Description

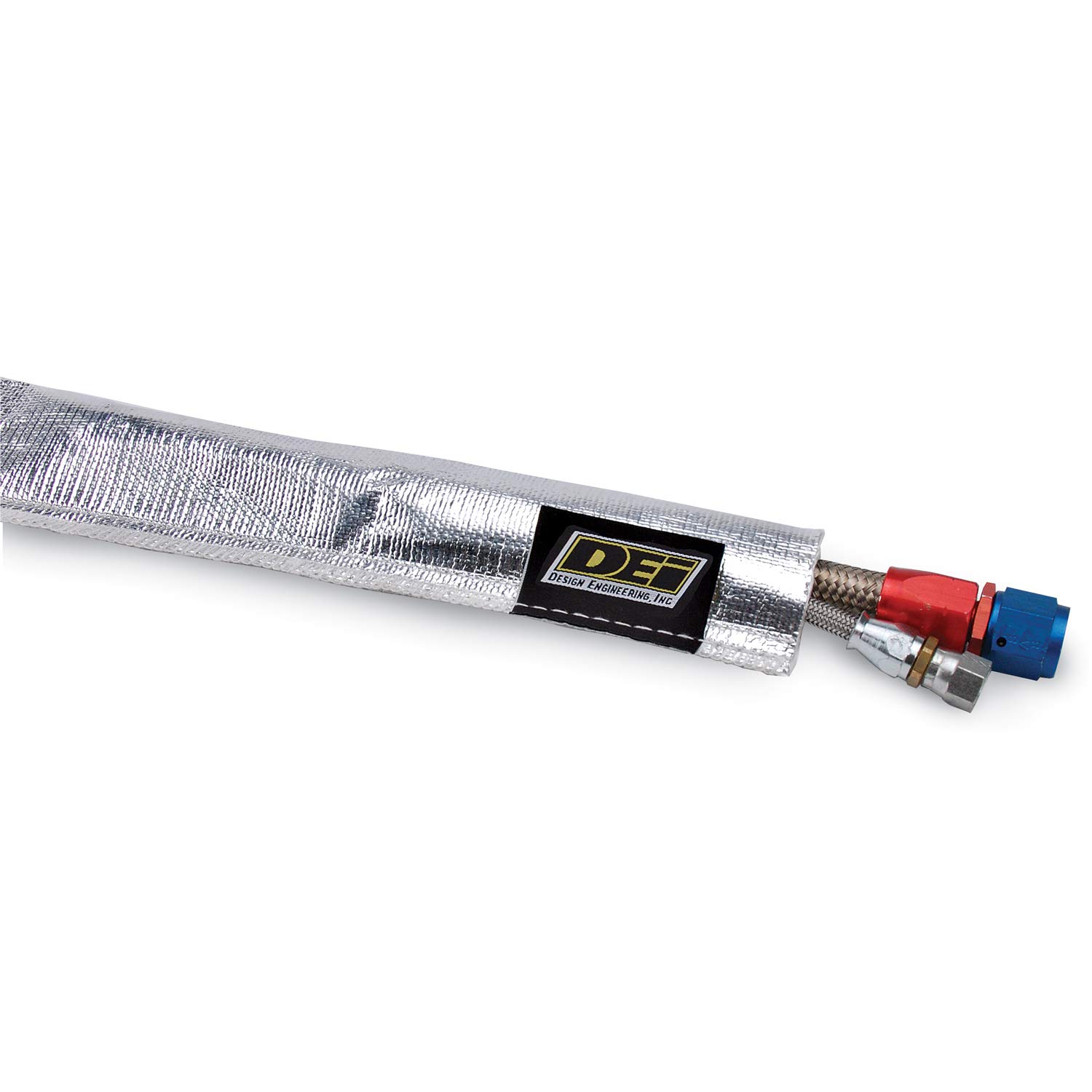

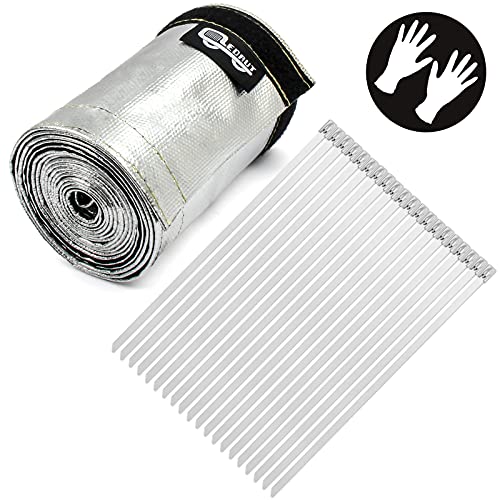

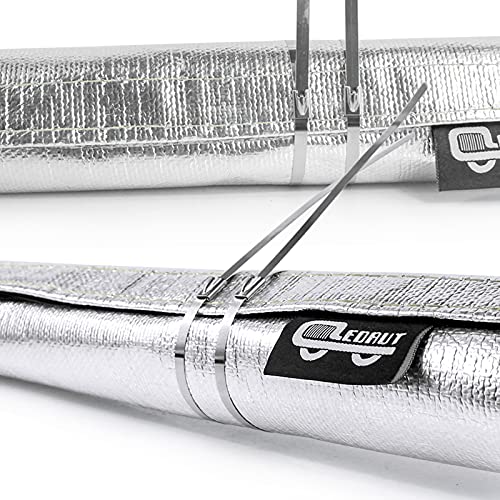

Professional Aluminized Heat Shield Sleeve – Advanced Thermal Protection with Convenient Hook & Loop Design
🔥 REVOLUTIONARY HOOK & LOOP DESIGN
- No-Disconnection Installation: Our unique hook and loop closure system allows installation without removing connectors, sensors or terminals
- Full-Length Access: The sleeve opens completely along one side for easy wrapping around existing components
- Secure Closure: Heavy-duty hook and loop fastening system maintains a tight seal even under extreme conditions
- Custom Fit: Simply trim to your desired length and wrap around any component needing protection
- Reusable Design: Can be removed, repositioned, and reused for maintenance or component upgrades
🔥 SUPERIOR THERMAL PROTECTION
- Direct Heat Resistance: Withstands up to 600°F (316°C) of continuous direct heat exposure
- Radiant Heat Protection: Shields components from up to 2000°F (1093°C) of radiant heat
- Aluminized Surface: Reflects over 90% of radiant heat away from protected components
- Thermal Barrier: Multiple layers of heat-resistant materials create an effective insulation barrier
- Temperature Reduction: Significantly lowers surface temperatures of wrapped components
🔥 PREMIUM CONSTRUCTION
Our aluminized heat sleeve is engineered for superior performance and durability in extreme environments:
- Outer Layer: Industrial-grade aluminized material reflects radiant heat
- Middle Layer: High-density insulating fiber provides thermal barrier protection
- Inner Layer: Soft, heat-resistant lining protects cables and hoses from abrasion
- Edge Treatment: Reinforced borders prevent fraying and deterioration over time
- Closure System: Heat-resistant hook and loop material maintains integrity at high temperatures
🔥 EXCEPTIONAL DURABILITY
- Abrasion Resistant: Withstands contact with rough surfaces and road debris
- Oil & Fluid Resistant: Repels automotive fluids including oil, coolant, and brake fluid
- Vibration Protection: Reduces wear caused by constant movement and vibration
- Weather Resistant: Maintains performance in extreme environmental conditions
- Long Service Life: Engineered for extended durability in high-stress applications
🔥 FLEXIBLE INSTALLATION
- Highly Pliable: Easily conforms to tight bends and irregular shapes
- Custom Sizing: Can be trimmed to exact length requirements with standard scissors
- Expandable Design: Accommodates connectors, terminals, and fitting variations
- Overlapping Capability: Can be installed with overlap for additional protection at critical points
- No Special Tools: Complete installation without any specialized equipment
🔥 TECHNICAL SPECIFICATIONS
| Feature |
Specification |
| Material Composition |
Aluminized fiberglass with insulating core and heat-resistant inner layer |
| Maximum Direct Temperature |
600°F (316°C) continuous exposure |
| Maximum Radiant Temperature |
2000°F (1093°C) intermittent exposure |
| Closure Type |
Full-length hook and loop fastening system |
| Heat Reflection Rate |
Approximately 90-95% of radiant heat |
| Flexibility Rating |
Bends to 1″ radius without compromising protection |
| Chemical Resistance |
Resistant to most automotive fluids, oils, and coolants |
| Recommended Service Life |
3+ years under normal operating conditions |
🔥 IDEAL APPLICATIONS
Automotive Applications:
- Fuel Lines: Protects against heat from nearby exhaust components
- Brake Lines: Prevents brake fluid overheating near exhaust manifolds
- Wire Harnesses: Shields electrical wiring from engine and exhaust heat
- Turbo Oil Lines: Critical protection for lines near turbochargers
- Intercooler Piping: Reduces heat transfer to intake air
- AC Lines: Improves air conditioning efficiency by reducing heat exposure
Performance Vehicle Applications:
- Aftermarket Fuel Systems: Protects high-flow fuel lines in performance applications
- Data Sensors: Shields temperature-sensitive electronics from heat soak
- Nitrous Lines: Maintains optimal temperature for nitrous oxide delivery
- Hydraulic Clutch Lines: Prevents fluid overheating in racing applications
- Power Steering Lines: Protects against heat-related fluid breakdown
Additional Applications:
- Marine Environments: Protects wiring and hoses in boat engine compartments
- Industrial Equipment: Shields hydraulic lines and electrical conduits in high-temperature areas
- Motorcycle Components: Protects rider from exhaust pipe heat and shields sensitive components
- RV/Camper Systems: Insulates propane lines and electrical systems near heat sources
- Home Workshop: Protects pneumatic lines, electrical cords, and hoses from heat exposure
🔥 INSTALLATION GUIDE
- Measure & Plan:
- Determine the required length, adding 1-2 inches for overlap at connection points
- Identify the best routing path for the sleeve to provide maximum protection
- Consider access requirements for future maintenance
- Prepare the Sleeve:
- If necessary, trim the sleeve to your desired length using standard scissors
- Open the hook and loop closure completely along the full length
- Apply to Component:
- Position the opened sleeve under the hose, wire, or component you wish to protect
- Wrap the sleeve around the component, ensuring full coverage
- For bends or curves, create slight overlap on the outside of the curve
- Secure the Closure:
- Align the hook and loop edges for a straight closure
- Press firmly along the entire length to ensure complete attachment
- Verify there are no gaps where heat could penetrate
- Final Inspection:
- Check that all areas needing protection are completely covered
- Ensure the sleeve isn’t restricting movement of flexible components
- Verify clearance from moving parts and extreme heat sources
🔥 PERFORMANCE ADVANTAGES
- Component Longevity: Extends the life of hoses, wires, and sensors by preventing heat degradation
- Improved System Efficiency: Keeps fluids at optimal operating temperatures for better performance
- Electrical Stability: Prevents voltage drops and signal interference caused by overheated wiring
- Fuel Delivery Protection: Maintains consistent fuel temperature for optimal combustion
- Sensor Accuracy: Shields electronic sensors from heat that could affect readings
🔥 HEAT MANAGEMENT COMPARISON
| Protection Method |
Temp. Reduction |
Installation Ease |
Reusability |
Maintenance Access |
| Our Aluminized Sleeve |
Up to 70% reduction |
Simple wrap & secure |
Fully reusable |
Quick access with hook & loop |
| Standard Heat Sleeves |
30-50% reduction |
Requires disconnection |
Limited reusability |
Complete removal needed |
| Exhaust Wrap |
40-60% reduction |
Complex wrapping |
One-time use |
Must cut to remove |
| Heat Shields |
50-65% reduction |
Mounting hardware needed |
Fully reusable |
Requires tool removal |
🔥 MAINTENANCE & CARE
- Periodic Inspection: Check for signs of wear, damage, or contamination every 6-12 months
- Cleaning: If necessary, clean outer surface with damp cloth when cool – do not saturate
- Repositioning: Periodically check and adjust positioning to ensure continuous protection
- Replacement: Replace if significant damage, contamination, or deterioration is observed
- Storage: If removed temporarily, store flat to prevent permanent creasing or deformation
🔥 CUSTOMIZATION OPTIONS
- Length Adjustment: Easily trim to custom lengths for perfect fit on any component
- Overlapping: Can be overlapped for additional thickness in critical areas
- Layering: Multiple sleeves can be used together for extreme heat applications
- Combination Protection: Can be used alongside other heat management products for comprehensive protection
🔥 SAFETY PRECAUTIONS
- Installation Safety: Always install on cool components to prevent burns
- Maximum Temperature: While highly heat resistant, avoid direct contact with open flames
- Gap Maintenance: Maintain appropriate clearance between sleeve and extreme heat sources
- Visual Inspection: Periodically check for heat damage or deterioration
- Proper Application: Ensure product is appropriate for your specific heat protection needs
🔥 WHY CHOOSE OUR ALUMINIZED HEAT SLEEVE
- Innovative Design: The hook and loop closure system offers convenience unavailable in traditional sleeves
- Superior Materials: Industrial-grade aluminized material outperforms standard fiberglass sleeves
- Versatile Application: Protects virtually any hose, wire, or component without complex installation
- Time-Saving: Installs in minutes without disconnecting components or specialized tools
- Exceptional Value: Professional-grade protection at an accessible price point
🔥
