Professional 6AN Swivel Hose End Fitting Kit – Complete 14-Piece Black Anodized Aluminum System for High-Performance Racing Applications
🏁 PREMIUM SPECIFICATIONS & MATERIALS
- Construction: T6061 Aircraft-Grade Aluminum with black anodized finish
- Working Pressure Rating: 1000 PSI maximum
- Temperature Range: -65°F to 252°F (-53°C to 122°C)
- Weight: Lightweight aluminum construction for reduced overall system weight
- Thread Specification: 6AN (9/16″-18) standard thread pattern
- Swivel Action: Full 360-degree rotation for precise alignment
- Flow Design: Full-flow internal design minimizes restriction
- Finish: Black anodized for corrosion resistance and professional appearance
- Compatibility: Works with all standard 6AN hoses and adapters
🏁 COMPLETE 14-PIECE KIT INCLUDES

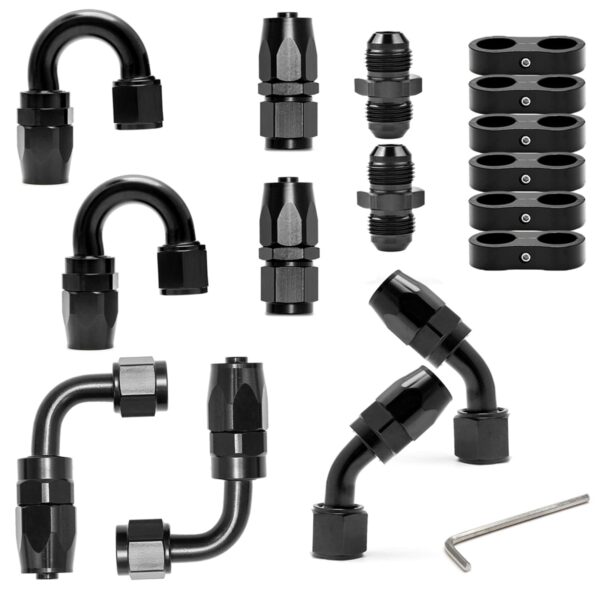

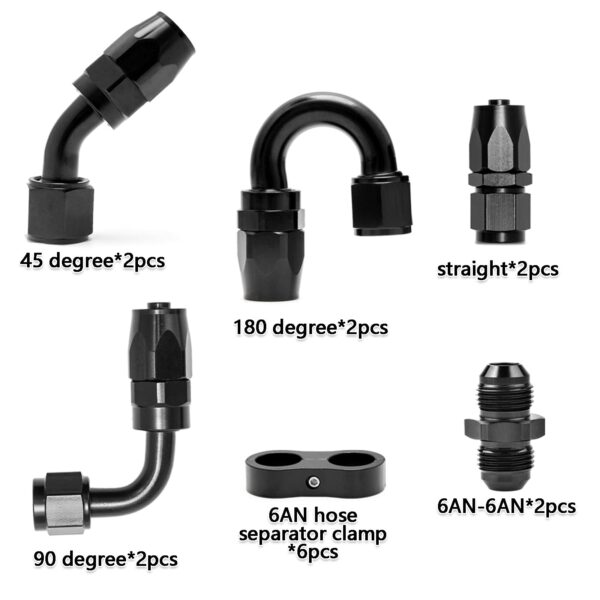

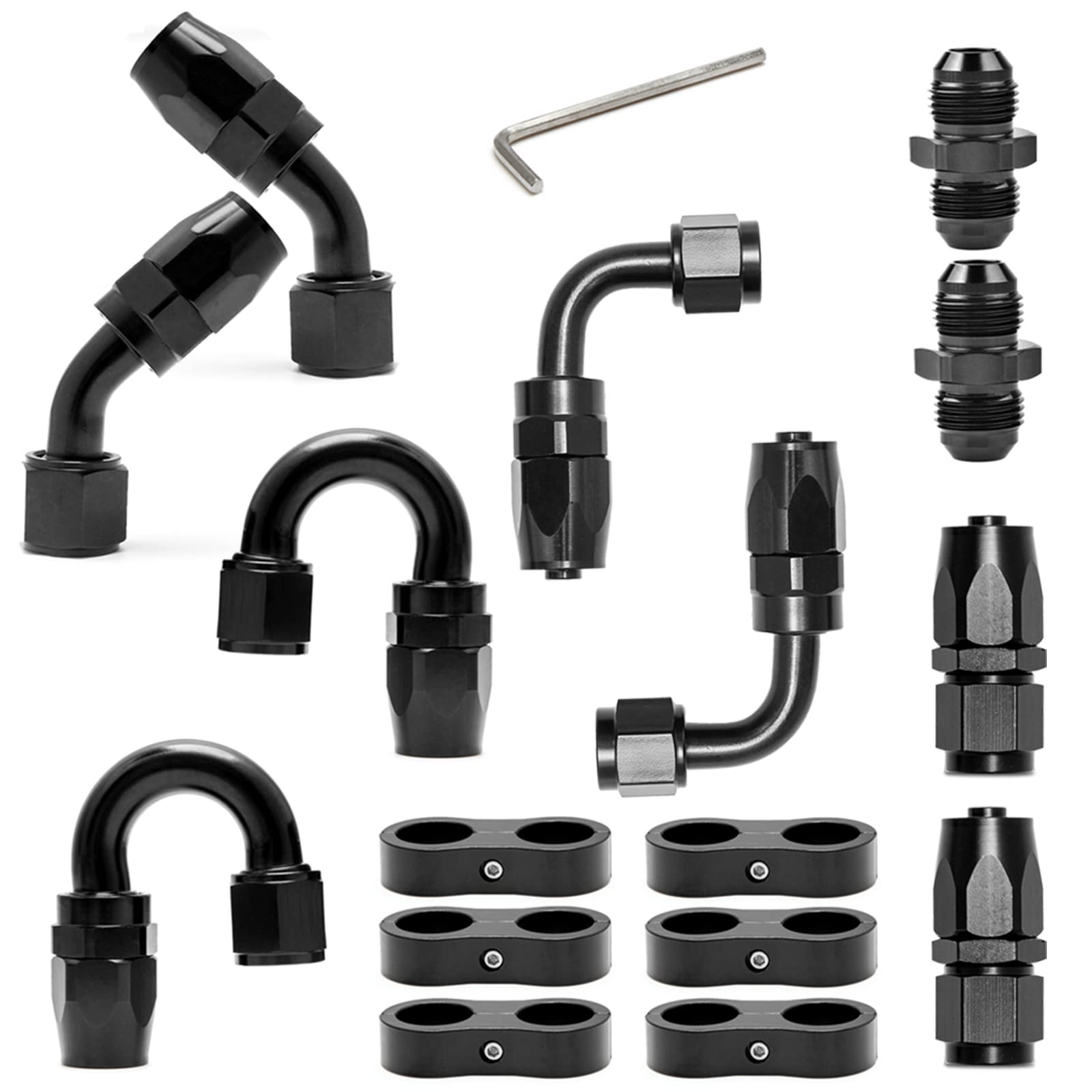

| Component | Quantity | Description |
|---|---|---|
| Straight Fittings (0°) | 2 | 6AN swivel straight hose end for direct line connections |
| 45° Angle Fittings | 2 | 6AN swivel 45-degree hose end for moderate offset routing |
| 90° Angle Fittings | 2 | 6AN swivel 90-degree hose end for perpendicular line transitions |
| 180° Angle Fittings | 2 | 6AN swivel 180-degree hose end for U-turn routing requirements |
| Hose Separator Clamps | 6 | 6AN line separators to prevent line contact and abrasion |
| Male Couplers | 2 | 6AN male union adapters for system extension or connection |
🏁 SUPERIOR ENGINEERING ADVANTAGES
- Swivel Design: Allows easy alignment after assembly, eliminating the need to twist the entire hose
- Precision Machined: CNC machined to exact tolerances for perfect sealing and leak-free performance
- Full-Flow Interior: Engineered internal geometry minimizes flow restriction for maximum performance
- High-Pressure Rating: 1000 PSI working pressure suitable for demanding race applications
- Vibration Resistant: Designed to maintain seal integrity in high-vibration environments
- Anodized Finish: Provides superior corrosion protection and resistance to automotive fluids
- Wide Temperature Range: Performs reliably in extreme temperature conditions
- Reusable Design: Can be disassembled and reused multiple times without performance degradation
🏁 PROFESSIONAL INSTALLATION FEATURES
- Tool-Free Alignment: Swivel design allows for line positioning after assembly without special tools
- Standard AN Wrench Compatibility: Uses common AN wrench sizes for installation and adjustment
- No Special Equipment: Installation requires only basic hand tools
- Pre-Assembled Components: Ready to install with no additional preparation required
- Clear Angle Markings: Precise angle specifications allow for accurate system layout
- Separator Clamp Design: Simple snap-fit installation with secure retention
- Consistent Torque Specs: Uniform torque requirements across all fittings
🏁 VERSATILE AUTOMOTIVE APPLICATIONS
Perfect for these fluid systems:
- Fuel Systems: Gasoline, E85, methanol, and race fuel delivery systems
- Oil Systems: Engine oil supply, oil coolers, and transmission cooling
- Brake Systems: Hydraulic brake lines, clutch lines, and fluid transfer
- Cooling Systems: Water cooling, intercooler plumbing, and heat exchangers
- Hydraulic Systems: Power steering, suspension systems, and hydraulic actuators
- Nitrous Systems: Nitrous oxide supply lines and purge systems
Ideal for these vehicle types:
- Race Cars: Circle track, drag racing, road course, and rally vehicles
- Performance Street Cars: Modified sports cars and high-performance vehicles
- Hot Rods & Customs: Custom-built vehicles requiring clean fluid routing
- Off-Road Vehicles: Trophy trucks, rock crawlers, and desert racers
- Motorcycles: Custom choppers, cafe racers, and performance sport bikes
- Marine Applications: Performance boats and personal watercraft
🏁 TECHNICAL PERFORMANCE COMPARISON
| Feature | Standard Fittings | Our 6AN Swivel Fittings |
|---|---|---|
| Installation Ease | Requires twisting entire hose for alignment | Swivel design allows post-assembly alignment |
| Flow Capacity | Often restricted by internal design | Full-flow design maximizes fluid transfer |
| Material Quality | Various grades of aluminum | Aircraft-grade T6061 aluminum |
| Pressure Rating | Typically 600-800 PSI | 1000 PSI for demanding applications |
| Corrosion Resistance | Basic anodizing or plating | Premium black anodized finish |
| Temperature Range | Limited range | -65°F to 252°F (-53°C to 122°C) |
| Vibration Handling | Can loosen under vibration | Designed for high-vibration environments |
🏁 PROFESSIONAL INSTALLATION TIPS
- System Planning:
- Map out your entire fluid system before beginning installation
- Use different angle fittings to create the cleanest, most direct routing
- Position separator clamps at appropriate intervals to prevent hose contact
- Consider serviceability when designing your layout
- Proper Assembly:
- Use aluminum AN wrenches to prevent marring the anodized finish
- Apply a small amount of assembly lubricant to threads before installation
- Hand-tighten fittings first, then finish with proper torque
- Typical torque specification: 15-18 ft-lbs for 6AN fittings
- Hose Installation:
- Cut hose ends square using appropriate cutting tool
- Properly prepare hose ends according to hose manufacturer’s instructions
- Install hose into fitting until it bottoms out in the socket
- Use the swivel feature to align the fitting after hose is secured
- System Testing:
- Pressure test the system before operation
- Inspect all connections for leaks
- Verify proper routing and clearance from moving parts and heat sources
- Re-check all connections after initial operation
🏁 MATERIAL SCIENCE & ENGINEERING
- T6061 Aluminum: Contains magnesium and silicon alloys for optimal strength-to-weight ratio
- Heat Treatment: Solution heat-treated and artificially aged (T6 temper) for maximum strength
- Anodizing Process: Electrochemical process creates hard, durable oxide layer for corrosion resistance
- Thread Design: Precision-cut 9/16″-18 threads per AN standards for perfect compatibility
- Sealing Technology: Utilizes metal-to-metal sealing surfaces with proper taper angles
- Swivel Mechanism: Engineered with precision tolerances to allow rotation while maintaining pressure seal
- Internal Flow Path: Designed with computational fluid dynamics to minimize turbulence and pressure drop
🏁 SEPARATOR CLAMP ADVANTAGES
- Prevents Abrasion: Maintains separation between hoses to prevent wear from vibration
- Heat Isolation: Keeps lines separated to prevent heat transfer between systems
- Organized Routing: Creates clean, professional-looking installation
- Secure Mounting: Includes mounting holes for attachment to chassis or brackets
- Vibration Damping: Helps reduce line movement and fatigue
- Easy Serviceability: Snap-apart design allows for service without complete disassembly
- UV Resistant: Material designed to withstand engine bay temperatures and UV exposure
🏁 SYSTEM DESIGN CONSIDERATIONS
- Flow Requirements: 6AN size is ideal for most fuel systems up to 600-700 HP (naturally aspirated)
- Pressure Requirements: 1000 PSI rating suitable for most automotive applications
- Routing Geometry: Different angle fittings allow for optimal routing around obstacles
- Serviceability: Swivel design allows for component removal without complete system disassembly
- Heat Management: Keep fuel lines away from exhaust components using proper routing and separators
- Vibration Management: Use separator clamps at appropriate intervals to prevent fatigue
- Aesthetics: Black anodized finish provides professional, race-inspired appearance
🏁 MAINTENANCE RECOMMENDATIONS
- Regular Inspection: Periodically check for signs of leakage or fitting movement
- Retorquing: Check fitting tightness after initial use and periodically thereafter
- Cleaning: Use only mild soap and water to clean fittings; avoid harsh chemicals
- Thread Protection: If disassembled, protect threads from damage during storage
- O-ring Inspection: Check O-rings for damage when servicing and replace if necessary
- System Pressure Testing: After any modification, test system for leaks before operation
