6AN PTFE Fuel Line Kit
E85 & Ethanol Safe

6AN PTFE Fuel Line
Complete Kits.

A complete 28-piece braided PTFE fuel line system for EFI, LS swaps, and turbo builds. Featuring a 3,000 PSI working pressure and a slimmer profile for tight routing. Ready to install out of the box.

Select Your Kit Watch Install Guide
Direct Supply

Choose Your Setup.

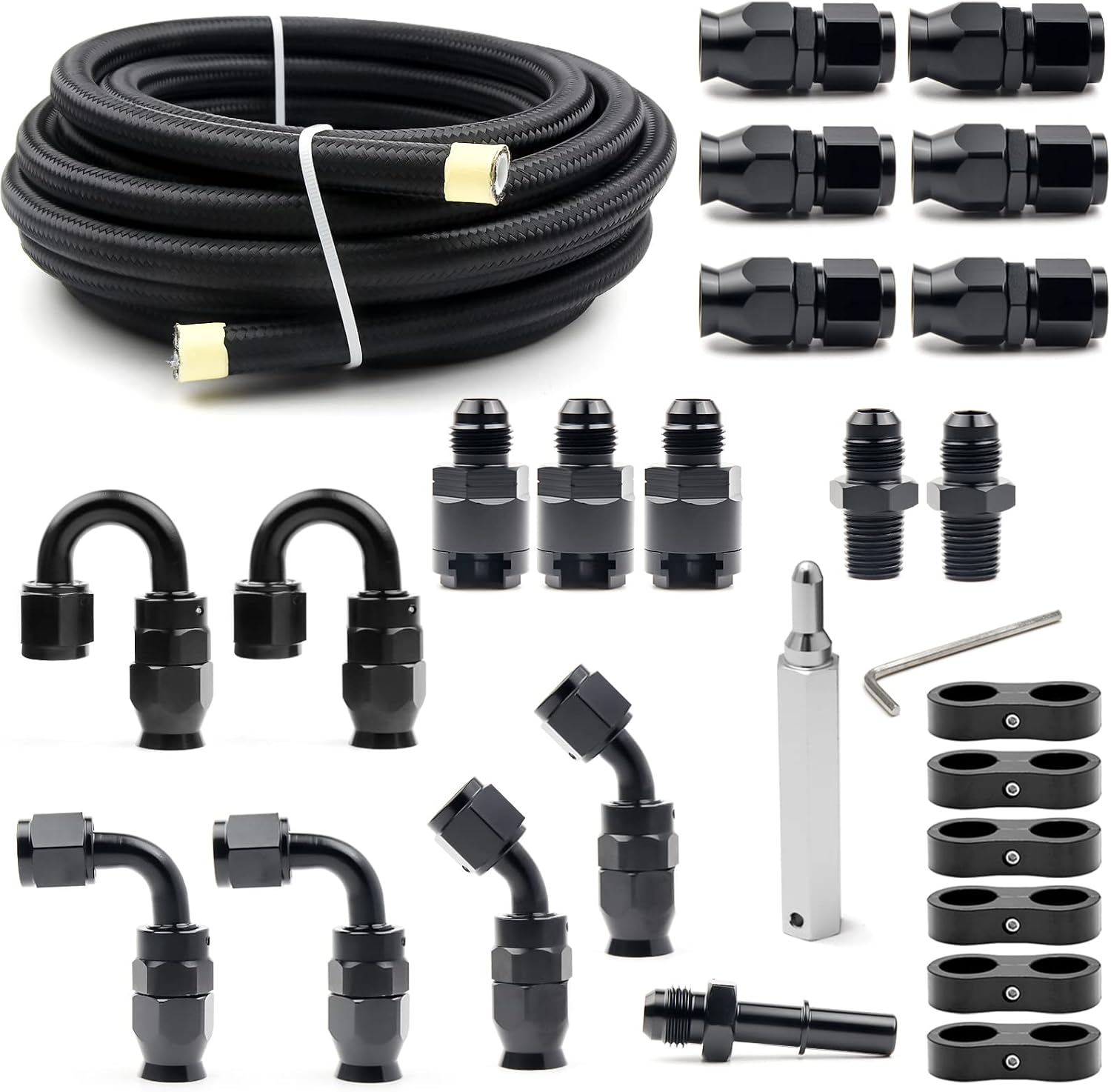

20FT Kit
20FT Length €85.00

6AN PTFE Kit - 20FT

Perfect for compact builds and short return lines. Includes 28 pieces.

View Details
Most Popular
26FT Kit
26FT Length €95.00

6AN PTFE Kit - 26FT

The ultimate length for full vehicle LS Swaps and EFI conversions.

View Details
8AN Kit
8AN High-Flow €115.00

8AN PTFE Kit - 26FT

Engineered for 1000+ HP builds requiring massive fuel delivery.

View Details
Common Issues

Why Upgrade Your
Fuel Lines?

Modern high-performance fuels and high-pressure injection systems push standard plumbing past its engineered limits.

Ethanol Compatibility

High ethanol concentrations in E85 demand chemically inert plumbing. Our PTFE inner core is 100% immune to alcohol degradation, race fuels, and fuel system corrosion.

Fuel Vapor & Garage Smells

Elastomeric hoses can experience microscopic hydrocarbon weeping over time. Dense PTFE provides zero vapor permeation, eliminating persistent gas odors.

High Underhood Thermal Resistance

The stainless steel and nylon outer braid combined with PTFE withstands up to 230°C, ensuring reliable routing alongside high-output exhaust manifolds and downpipes.

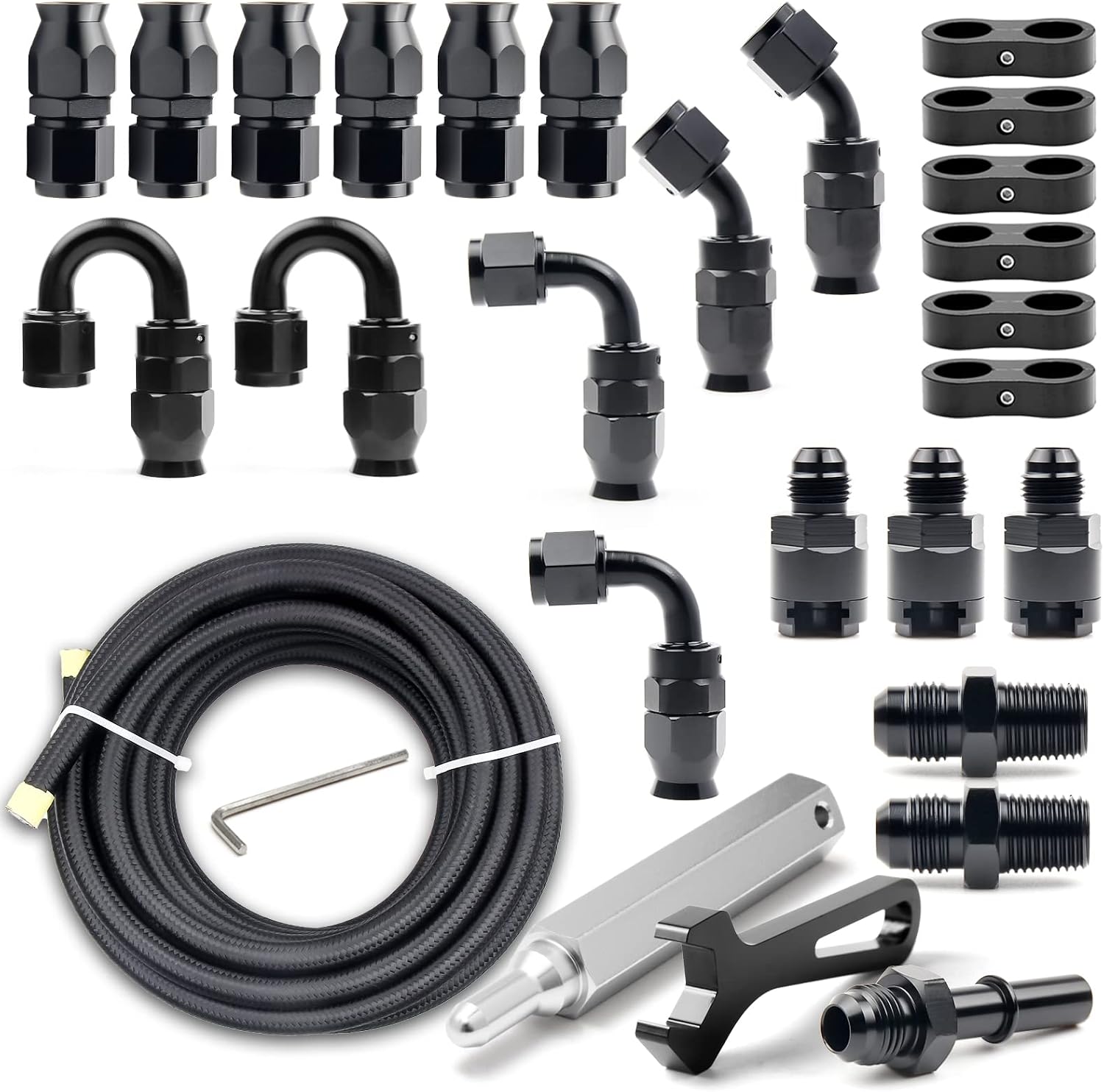

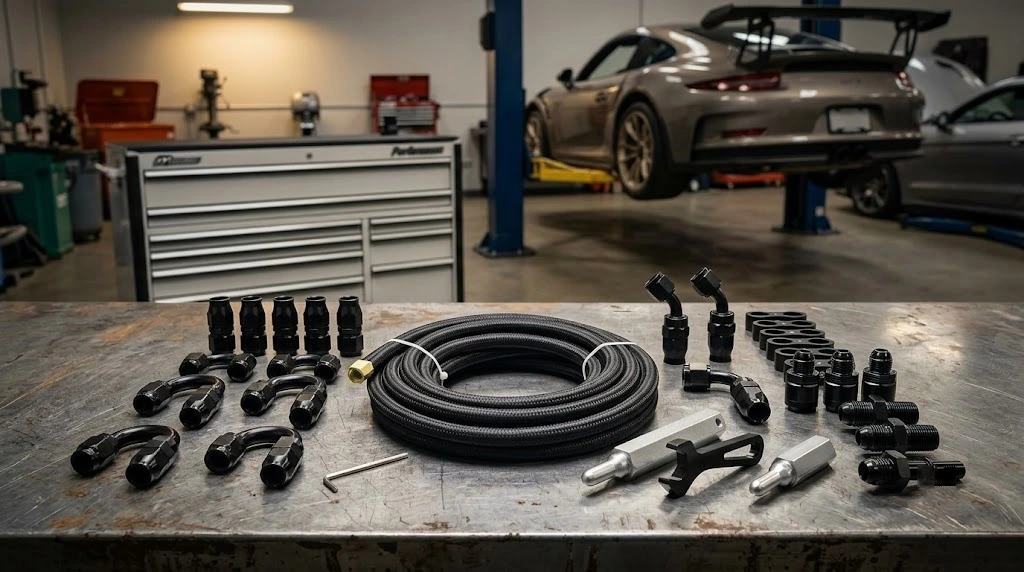

The Complete 28-Piece Kit

Buy Once. Install Once. No Missing Pieces.

  • 1 x 26FT (7.9m) 6AN Braided PTFE Hose (Slim 0.47" OD)
  • 12 x T6061 Aluminum Fittings (Straight, 45°, 90°, 180°)
  • 4 x EFI Quick Disconnects (3/8" & 5/16") with Laser-Etched IDs
  • Included Tools: PTFE Reaming Tool & Custom Wrench
Working Pressure
3,000 PSI
Temperature Rating
-60°C to 230°C
Assembly Tutorial

Install It Right The First Time.

PTFE is rigid. We include a specialized Reaming Tool in every box to make assembly flawless and leak-free.

  1. 01

    Slide the Collar FIRST

    Cut the hose cleanly, slightly fray the outer braid, and slide the socket collar over the hose.

  2. 02

    Use The Reaming Tool (Crucial)

    Insert the included reaming tool to open up the PTFE core. Never force a fitting into an un-reamed hose.

  3. 03

    Insert Olive & Tighten

    Push the brass olive under the braid, insert the fitting core, and tighten using the provided aluminum wrench.

  4. 04

    Pressure Leak Test

    Always pressure test your assembled lines with compressed air before routing them in the vehicle.

PTFE vs. Other Materials

Understanding material differences ensures you choose the right plumbing for your specific horsepower and application needs.

Feature Our PTFE Kit Standard Rubber Nylon / CPE
E85 & Ethanol Safe 100% Immune Suitable for pump gas; service life shortens with ethanol Moderate Life
Fuel Vapor Containment Zero Permeation Standard Barrier Low Permeation
Working Pressure 3,000 PSI 250 PSI 500 PSI
Profile (Outer Diameter) Slim (0.47") Standard Profile Standard Profile

Choosing Between Rubber and PTFE?

While high-pressure PTFE is mandatory for high-demand EFI conversions, turbo setups, and corrosive E85 racing fuels, standard reinforced rubber remains the proven, cost-effective standard for gravity-fed carburetors, utility engines, and small machinery. If you are servicing outdoor power equipment, explore our dedicated rubber fuel line for lawn mowers and low-pressure fuel systems.

Frequently Asked Questions

Is this kit E85/ethanol safe? +
Yes, the PTFE inner liner is compatible with all fuels including E85, methanol, and diesel. It is chemically inert and will not break down when exposed to aggressive racing fuels.
What size fuel line is this? +
This is a 6AN line with a 3/8" inner diameter and a slim 0.47" outer diameter for easier routing. Also available in 8AN for extreme horsepower builds.
Do I need extra fittings or tools? +
No. The 28-piece kit includes 12 fittings in 4 angles, EFI quick disconnects, clamps, a custom PTFE reaming tool, and an aluminum wrench.
Is installation difficult? +
It is straightforward if you use the included reaming tool. We highly recommend watching our 90-second install video and always performing a pressure leak test before starting your vehicle.

Complete Your Build.

Upgrading your fuel lines? Ensure your performance setup is flawless. Protect your lines from heat with our Titanium Exhaust Wraps, or take full control of your airflow with our Valvetronic Cutout Kits.

Shop Exhausts Shop Wraps

Upgrade to the premier 6AN PTFE fuel line kit in the market. Whether you are performing an LS swap, upgrading to a high-pressure EFI system, or plumbing custom performance lines, a reliable PTFE fuel line kit is the foundation of your build. Standard rubber hoses are well suited for low-pressure pump gas configurations, but high-demand motorsport applications require enhanced barrier protection. Our E85 ethanol-resistant braided hose features a heavy-duty stainless steel and nylon outer braid, while the internal diameter guarantees high flow. Shipped globally, this fuel line repair kit includes all necessary T6061 aluminum fittings and quick disconnects. Pair your fuel system upgrades with our precision valvetronic exhaust setups for the ultimate performance build.
