Silicone vs Rubber Vacuum Hoses

Most people pick a vacuum hose the wrong way: they grab whichever material is cheapest, or whichever the last guy used, and assume a hose is a hose. That assumption is exactly why we see the same failure over and over — a vacuum line swapped for rubber near a turbo outlet, where sustained heat pushes it past its rating until it hardens and cracks within weeks. The hose wasn’t defective. It was just the wrong material for that spot.

We’ve been supplying vacuum system components for over twenty years, and this mistake repeats across shops and fleets. Silicone vs rubber vacuum hoses isn’t a question of which is universally better; it’s about matching material properties to operating conditions. Here’s what separates a long-lasting install from a premature failure.

TLDR

• Silicone vacuum hoses withstand temperatures from -60°C to 200°C, while rubber (NBR ~100°C / EPDM ~120°C) handles lower ranges.
• Silicone lasts longer in demanding applications — typically 10–15 years versus 5–8 years for rubber (replacement-interval figures; service life shortens under heat and heavy use).
• Silicone costs more upfront, typically 2–4 times the price of equivalent rubber hoses.
• For sustained high-temperature zones (>120°C) or extended service life, silicone is the preferred choice; for conventional temperature areas (thermostat range 90–100°C), EPDM rubber performs adequately — OEMs use rubber hoses that last the vehicle’s lifetime.
• LEDAUT supplies a full range of silicone vacuum hoses and stainless steel fittings, supporting OEM/ODM customization.

For a complete selection of vacuum hose kits organized by inner diameter (3mm through 10mm), see our silicone vacuum hose kits product page.

Quick Comparison Table

Here’s how silicone and rubber vacuum hoses stack up across key dimensions:

Property	Silicone	Rubber (EPDM/NBR)
Temperature range	-60°C to 200°C	-40°C to 100–120°C
Service life	10–15 years	5–8 years
Cost factor	2–4× rubber	Baseline
Ideal Use	High-temp zones, longevity-critical applications	Standard temperature zones, OEM replacement
Chemical resistance	Excellent vs coolant, ozone, UV; poor vs oil & fuel vapor (use fluorosilicone liner for oily service)	NBR: excellent vs petroleum / EPDM: poor vs oil
Flexibility at low temp	Remains flexible down to -60°C	Stiffens below -20°C

Neither material wins outright — the right choice depends on your application.

Rubber Vacuum Hoses

Rubber has been the default material for vacuum hoses since the early days of automotive manufacturing. Its properties explain why it remains widely used despite newer alternatives.

Material Properties

Most factory-installed vacuum hoses use one of two rubber compounds: NBR (nitrile butadiene rubber) or EPDM (ethylene propylene diene monomer). NBR offers good resistance to petroleum-based fluids and operates reliably up to approximately 100°C. EPDM provides better heat resistance, handling temperatures up to around 120°C, along with superior ozone and weathering resistance.

Both materials share common characteristics: they’re cost-effective, easy to manufacture into complex shapes, and provide adequate sealing performance under normal operating conditions. However, rubber undergoes chemical changes over time. Heat accelerates oxidation, causing the polymer chains to cross-link and the material to harden. Exposure to ozone creates surface cracking. Petroleum vapors cause swelling and softening. These degradation mechanisms aren’t defects — they’re inherent to the chemistry.

The result is predictable: rubber gradually hardens, develops microcracks, and eventually leaks. In moderate climates with gentle driving, this takes several years; under sustained thermal stress, it happens much faster. Near a turbo outlet, radiant heat can hold a line at 150°C or higher for the life of the drive — past EPDM’s rated ceiling and deep into the range where rubber fails within weeks, not years.

Typical Applications

OEM manufacturers specify rubber vacuum hoses for most factory installations because they meet the design requirements at minimal cost. Engine bays are engineered so that vacuum lines route away from the hottest components — headers, turbo housings, exhaust manifolds. In these protected locations, ambient temperatures stay within rubber’s safe operating range.

Common applications include:

• PCV (positive crankcase ventilation) system connections
• Brake booster vacuum supply
• EGR (exhaust gas recirculation) control lines
• Fuel pressure regulator vacuum reference
• Intake manifold vacuum ports for various sensors

For stock vehicles driven under normal conditions, rubber hoses routinely last the vehicle’s intended service life. That’s why OEMs don’t upgrade to silicone — there’s no functional benefit to justify the added cost.

Aftermarket shops replacing worn hoses on older vehicles often default to rubber as well, especially when the original routing hasn’t changed and the replacement is a direct OEM-equivalent part. This approach works fine if the failure was due to age rather than heat damage.

Silicone Vacuum Hoses

Silicone entered the automotive aftermarket as a premium upgrade material, offering performance advantages that justify its cost in specific applications.

Material Properties

Silicone rubber (polysiloxane) differs fundamentally from organic rubber compounds. Its silicon-oxygen backbone provides exceptional thermal stability, maintaining flexibility from -60°C to 200°C without significant degradation.

Key advantages include:

• Thermal stability: No hardening or cracking at sustained high temperatures
• Chemical resistance: resists coolants, ozone, and UV well. Note: standard silicone (VMQ) is poor against oil and fuel vapor — hydrocarbon vapors cause it to swell and degrade. For oily service like PCV lines, you need a fluorosilicone liner or NBR.
• Low compression set: Maintains sealing force over time without permanent deformation
• UV and ozone resistance: Doesn’t crack from sun exposure or electrical discharge
• Flexibility retention: Remains pliable even in extreme cold

The trade-off is mechanical strength. Silicone has lower tensile strength than reinforced rubber, making it more susceptible to abrasion and physical damage. It also costs 2–4 times as much as equivalent rubber hoses.

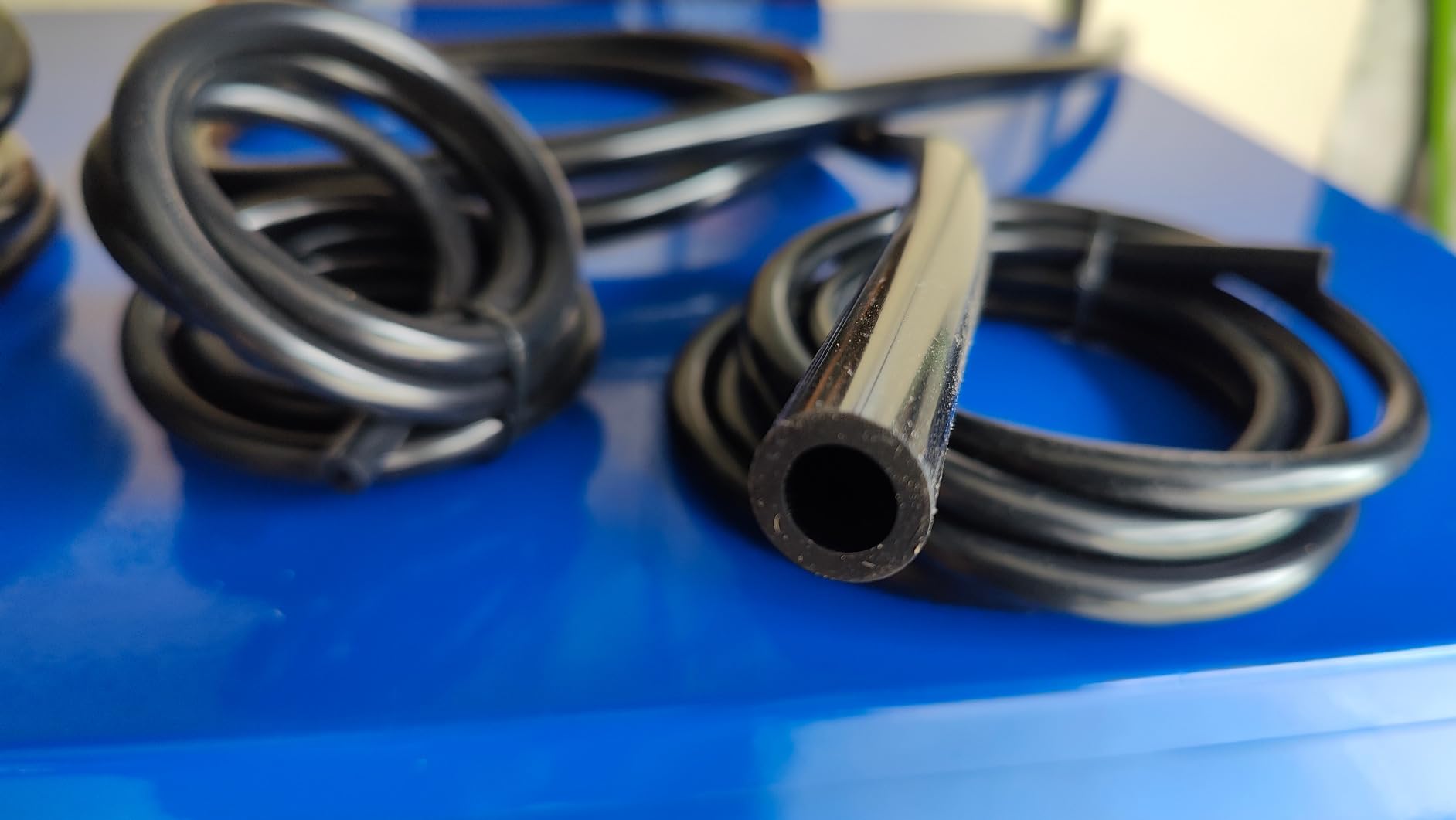

LEDAUT manufactures silicone vacuum hoses using high-grade polysiloxane compounds paired with SS304 stainless steel fittings for durability and corrosion resistance. Our production supports OEM/ODM customization for distributors and performance shops requiring specific dimensions or configurations.

Applications

Silicone vacuum hoses excel in environments where rubber struggles:

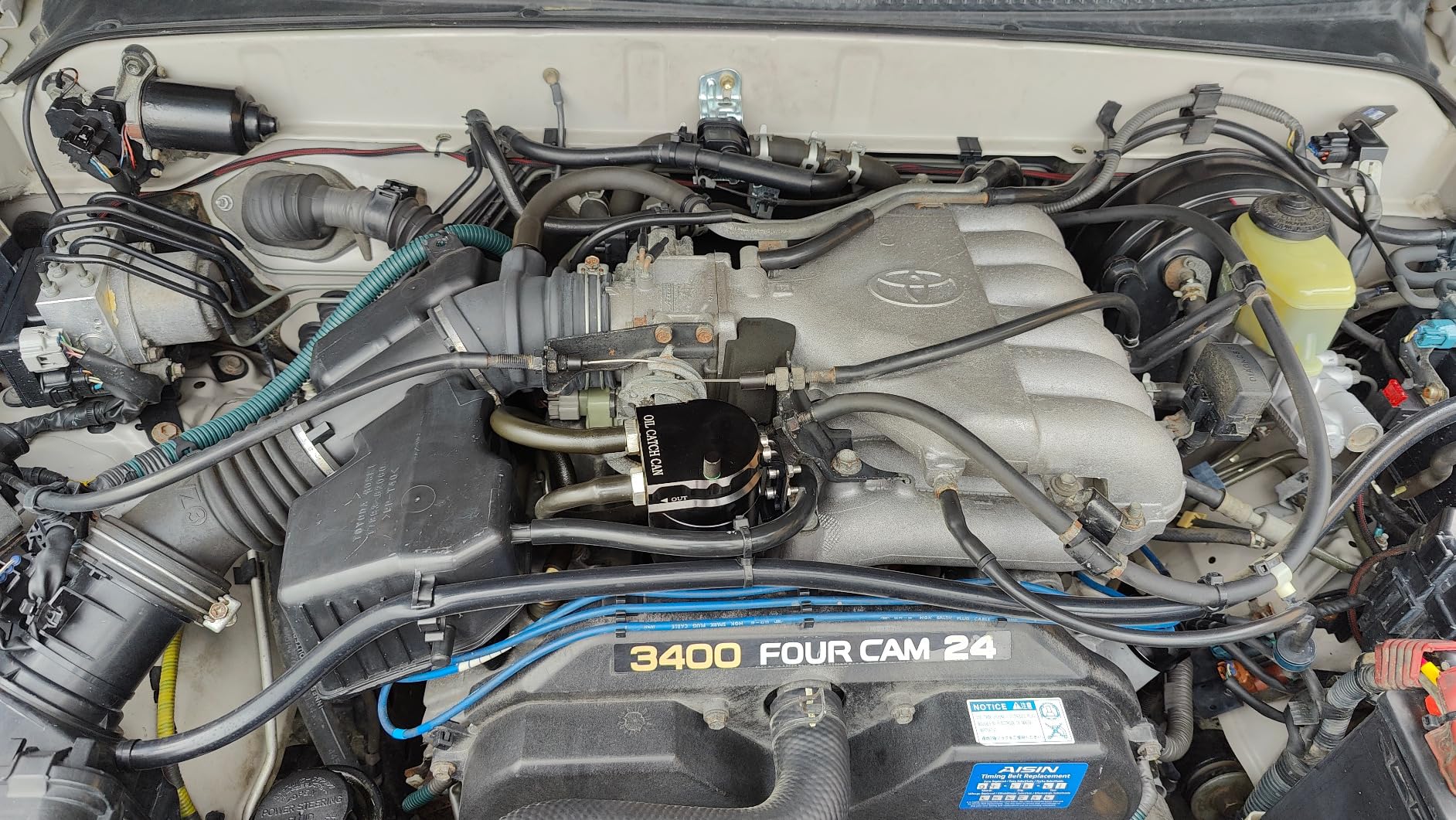

• Turbocharged and supercharged engines: Boost pressures and elevated underhood temperatures exceed rubber’s comfort zone
• Performance builds: Modified engines run hotter and generate more vibration, accelerating rubber degradation
• High-mileage restorations: Owners seeking “install once, forget forever” reliability prefer silicone’s extended service life
• Marine and coastal applications: Silicone resists salt spray and humidity better than standard rubber
• Extreme climate operation: Vehicles in very hot or very cold regions benefit from silicone’s wider temperature range

One pattern we see repeatedly: customers who’ve experienced multiple rubber hose failures on a turbocharged vehicle switch to silicone and never look back.

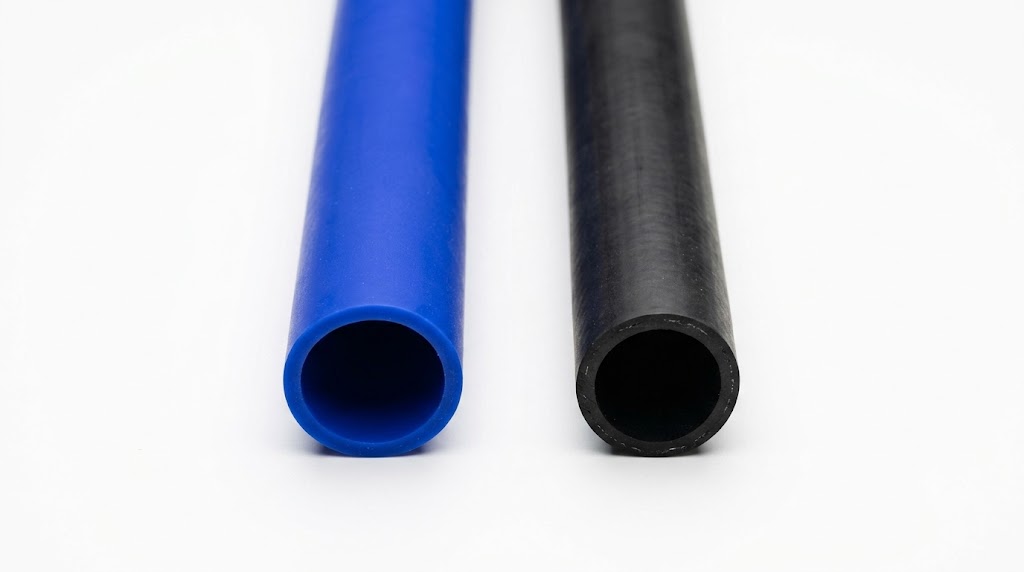

Silicone vs Rubber Vacuum Hoses: Key Differences

Understanding the fundamental distinctions between silicone and rubber helps make informed material selections.

Temperature Resistance

This is the single biggest differentiator. Silicone maintains its physical properties across a range of -60°C to 200°C, while rubber compounds top out around 100–120°C depending on formulation.

In practical terms, silicone won’t harden, crack, or lose elasticity under sustained heat. Rubber, by contrast, hardens and embrittles above its rated temperature. Once that starts, it accelerates — a heat-damaged hose fails much sooner than one that’s simply aged.

For continuous exposure above 120°C, silicone is the preferred choice among common elastomers. Even in borderline cases — say, 100–120°C sustained — silicone provides a safety margin that rubber can’t match.

Lifespan

Silicone vacuum hoses typically last 10–15 years under typical automotive conditions — often matching or exceeding the vehicle’s own service life — compared to 5–8 years for rubber (replacement-interval figures). These ranges account for variation in operating environment, driving patterns, and maintenance practices: mild duty and routing away from heat sources favor the high end, while sustained thermal stress shortens both.

The difference stems from degradation mechanisms. Rubber ages through oxidation, ozone attack, and thermal breakdown — all unavoidable processes that accelerate with heat exposure. Silicone resists these mechanisms inherently, so its aging rate is dramatically slower — a silicone line installed today often matches the remaining service life of the vehicle it’s mounted on.

That said, lifespan isn’t infinite. Silicone can still suffer from physical damage (abrasion, cuts, crushing) or chemical attack from incompatible substances (certain solvents, strong acids). Proper installation and routing remain critical regardless of material choice.

Cost

Silicone costs 2–4 times more than equivalent rubber hoses. For a single vacuum line, the difference is a few dollars; for a complete overhaul with a dozen connections, it adds up quickly.

The economic question isn’t just upfront cost — it’s total cost of ownership. A rubber hose routed near heat and swapped again after a few years — versus a silicone line that may last the life of the vehicle — adds labor for diagnosis and replacement, plus collateral damage from vacuum leaks. Silicone’s extended service life reduces these recurring costs.

For professional shops, the calculation includes reputation risk. A customer who returns twice for the same vacuum leak loses confidence in the shop’s workmanship, even if the root cause was material limitation rather than installation error. Silicone reduces callback frequency, protecting both profit margins and customer relationships.

Gas Permeability

One silicone weakness that rarely makes the spec sheet: it is measurably more gas-permeable than rubber. Gas molecules pass through a silicone wall more readily than through EPDM or NBR of equal thickness — the same property that lets hydrocarbon vapors migrate into the material and swell it.

For most vacuum lines this is a non-issue. But where signal fidelity matters — a MAP sensor reference line, or a vacuum source feeding a precision actuator — that permeability can blur the reading. In those spots, EPDM or nylon performs better than silicone. If you’ve standardized on silicone for heat reasons, keep those few signal-critical lines in EPDM or route them in hard line; the performance gain from the switch is real, and the trade is negligible.

When Silicone and Rubber Aren’t the Answer

Silicone and EPDM cover the great majority of automotive vacuum applications, but a few jobs call for something else:

• Nylon tubing: OEMs use it for EVAP and emissions routing. Rigid, lightweight, and highly resistant to fuel-vapor permeation — the right call when replacing factory nylon lines, but it needs heat to bend and tends to crack with age, so it’s not for high-vibration areas.
• FKM (Viton): The material for fuel-system and evaporative-emissions lines that see liquid fuel or heavy fuel vapor. It handles fuel chemistry that both silicone and EPDM struggle with.
• Copper or aluminum hard line: For brake boosters and other critical vacuum circuits in race cars, hard line removes permeation and collapse risk entirely. More labor to install, but zero maintenance over the life of the vehicle.

Stick with silicone or EPDM for general vacuum maintenance; the specialty options above earn their place only where fuel contact, extreme pressure, or a permanent install is involved.

When to Choose Each Type

Material selection should follow operating conditions, not marketing claims:

Choose rubber when:

• Operating temperatures stay below 100°C consistently
• The application is OEM-equivalent replacement with unchanged routing
• Budget constraints dominate the decision
• Expected service life aligns with the vehicle’s remaining useful life

EPDM rubber handles conventional temperature zones (thermostat range 90–100°C) without issue — this is exactly why OEMs use it successfully across millions of vehicles. If you’re replacing a failed hose on a stock daily driver and the original routing kept it away from heat sources, rubber is a perfectly valid choice.

Choose silicone when:

• Sustained temperatures exceed 120°C
• Extended service life is a priority
• The vehicle is turbocharged, supercharged, or heavily modified
• Operating in extreme climates (very hot or very cold)
• Previous rubber hose failures indicate heat-related degradation

Even with silicone, extreme proximity to turbochargers or exhaust components warrants additional protection. We recommend adding heat shielding or reflective wrap for hoses routed within a few inches of these heat sources. Silicone handles high temperatures, but radiant heat from exhaust manifolds can push local temperatures beyond any elastomer’s rating.

The most common question we get from shops is: “Should I upgrade all vacuum hoses to silicone, or just the ones near heat sources?” Our answer: prioritize by temperature exposure. Identify which lines run near headers, turbos, or exhaust, and upgrade those first. Lines in cooler areas can stay rubber unless you’re pursuing maximum longevity.

A Buyer’s View: Stocking and Specifying by Use Case

If you’re a shop or distributor deciding what to stock, the decision looks a little different than it does for a one-off repair:

• Daily-driver and fleet stock replacements: EPDM rubber is the workhorse. It meets OEM specs at lower cost, and a stock daily driver rarely needs more. Stock it in the common IDs and you’ll move volume.
• Turbo, performance, and heat-exposed builds: Silicone for anything near the turbo, headers, or exhaust — heat kills rubber there quickly. Standard lines away from heat can stay EPDM. A hybrid approach (silicone for hot zones, EPDM for the rest) gives the best performance at the lowest cost.
• Winter-climate vehicles (northern US / Canada): Silicone under the hood. Rubber stiffens and can crack at extreme cold, while silicone stays flexible down to -60°C.
• Show cars and restorations: Silicone in a color that matches the build. It’s an install-once material, and colored silicone doesn’t fade like painted rubber.

Most of our wholesale customers run a split rather than an either/or — roughly 70% EPDM for volume-driven business and 30% silicone for the premium and performance niches. That balance covers the full market without over-committing to the higher-cost material.

Common Failure Patterns (and the Fix)

A wrong hose material often announces itself with a symptom that looks like an electrical or sensor problem. Recognizing the pattern saves a diagnostic detour:

• Idle hunt after a silicone swap: If a car idled fine on rubber and hunts at idle after silicone was installed, silicone’s higher gas permeability is letting a small signal leak develop on the MAP or PCV lines. Swap those back to EPDM.
• Boost leak codes on a turbo car (P0299, P0234): EPDM within about 12 inches of the turbo hardens, cracks, and the crack bleeds boost. Fix is silicone in that zone.
• Cold-start vacuum loss in northern climates: EPDM that’s flexible at room temperature turns rigid at roughly -10°F and below. A stiff hose around a tight bend won’t seal until the engine warms — hard starts and rough idle on cold mornings. Silicone stays flexible in the cold.
• Swollen PCV hose: Silicone on a PCV connection that carries oil vapor absorbs the oil and swells, then collapses or pulls loose. A short EPDM section right at the PCV valve fixes it while silicone stays on the rest of the system.

FAQ

Q: Can I mix silicone and rubber hoses in the same vacuum system?
A: Yes, this is common practice. Use silicone for high-temperature sections and rubber for cooler areas. Just ensure each hose is rated for its specific location’s temperature and chemical exposure.

Q: Do silicone vacuum hoses require special clamps?
A: Standard hose clamps work fine with silicone, but we recommend stainless steel clamps (like our SS304 band clamps) to avoid rust and keep consistent clamping force. Avoid zinc-plated clamps, which corrode and can stain silicone.

Q: Will silicone hoses fit my existing rubber hose connections?
A: Generally yes — silicone hoses are manufactured to standard automotive dimensions. However, silicone has slightly different wall thickness tolerances than rubber, so verify fitment before final installation. LEDAUT’s silicone vacuum hose kits are sized to match common OEM specifications (3mm through 10mm inner diameters).

Q: How do I know if my vacuum hose failure was caused by heat or age?
A: Heat-damaged rubber becomes hard, brittle, and develops deep cracks along the length (heat drives hardening, not softening). Age-related degradation shows as surface checking (fine spiderweb cracks) and gradual hardening. If the hose is near a heat source and shows hardening, heat is the likely culprit. Softening usually points to oil or fuel contamination instead.

Q: What clamps and prep keep silicone hoses from failing?
A: Two small habits prevent most premature failures. First, use spring-type or smooth-band clamps on silicone — worm-gear clamps can cut into the soft silicone wall. Second, deburr any metal fitting before sliding the hose on (a sharp edge scores the interior) and cut the hose cleanly with a razor or hose cutter, since a ragged cut leaves exposed fibers that wick moisture. Leave 1–2 inches of slack per line so engine movement doesn’t pull the fitting loose. For the full step-by-step, see our silicone hose installation guide.

Q: Are there any downsides to using silicone vacuum hoses?
A: Silicone has lower abrasion resistance than reinforced rubber, so protect it from rubbing against sharp edges or moving components. It’s also more expensive upfront. Beyond that, there are no significant drawbacks for automotive vacuum applications.

Q: What sizes do vacuum hoses come in?
A: Common automotive vacuum hose IDs span 1/8 in (3.2 mm) for small HVAC and emissions solenoid lines, 3/16 in (4.8 mm) for boost-reference and MAP lines, 1/4 in (6.4 mm) — the most common size, used for PCV and general routing — 5/16 in (8 mm) for larger PCV and EVAP lines, and 3/8 in (9.5 mm) for brake booster and large EVAP runs. Whatever the material, measure the fitting you’re connecting to rather than the old hose (old rubber stretches and its ID drifts wider). See our guide on choosing the right vacuum hose size for the full breakdown.

Conclusion

Silicone vs rubber vacuum hoses: if you remember one thing, it’s temperature. Map where each line routes, keep rubber below its ~100°C limit, and move silicone into anything that runs hot. That single habit prevents most vacuum leaks we see.
