The call comes in every spring — a mower that won’t start. The owner has already replaced the spark plug, cleaned the air filter, and drained the old gas. None of it helps. When the line finally comes off the carburetor, it comes apart in your fingers: dry, cracked, black inside. It has been failing for months, quietly, and the last of it crumbles into the bowl right when the mower is needed most.
A rubber fuel line for small engines is a small, inexpensive part, and that is exactly why it gets ignored. It rarely fails loudly. It hardens, cracks, sheds particles downstream into the carburetor, and then one Saturday morning the engine won’t run. The fix is usually a length of hose and two clamps — the hard part is knowing which hose, and why. What follows is the same thing we tell shops and customers when they call us about it.
What Is a Rubber Fuel Line for Small Engines?
A fuel line is the small hose that carries gasoline from the tank to the carburetor or fuel pump. On most mowers it is a short run — often less than two feet — tucked behind the engine shroud or under the deck.
It looks like an ordinary hose, but it has to survive constant contact with gasoline and whatever additives are blended into it, plus heat from a nearby engine, plus vibration. The material and the construction matter, and that is where most fitment problems start.
You will find these on three broad categories of equipment:
- Push mowers — the simplest layout, usually one short line from tank to carburetor.
- Riding mowers and lawn tractors — longer runs, sometimes with a fuel filter inline, a return line on some models, and a separate pulse line on machines that use a vacuum-operated fuel pump.
- Other small engines — string trimmers, chainsaws, blowers, generators, and snowblowers use the same basic hose in smaller diameters.
One thing worth saying plainly: a fuel line is not the same part as the vacuum hose or the clear vinyl tubing sitting on the shelf next to it. Those carry air. Neither is formulated for gasoline, and both will swell, soften, and eventually collapse if you put fuel through them.

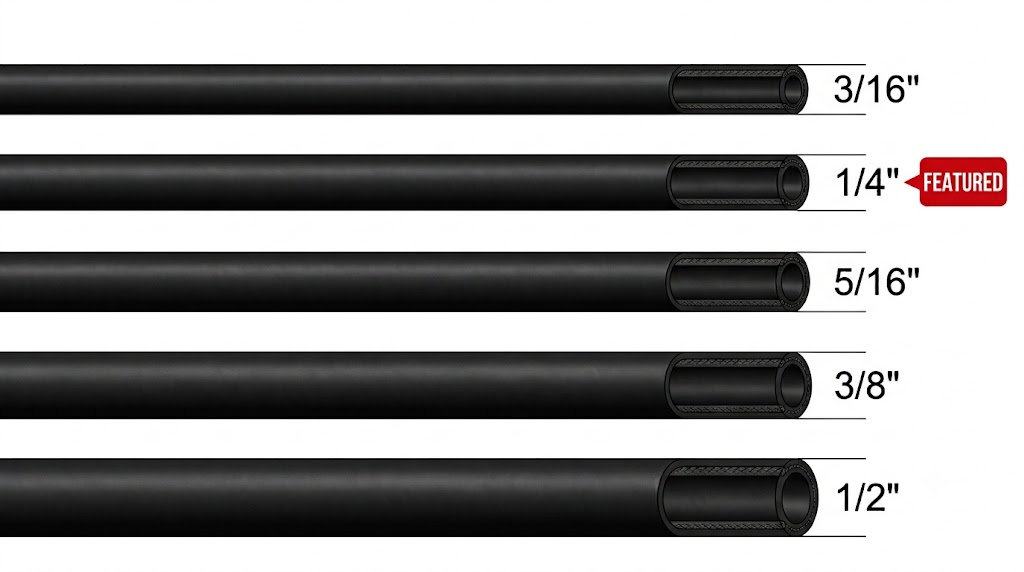

Rubber Fuel Line Sizes for Small Engines
The number that matters is inner diameter (ID) — the hole the fuel passes through, and the dimension that has to match the barb on the tank and the carburetor.
Measure the fitting the hose pushes onto, not the old hose. An old line has been stretched and swollen by years of fuel and heat, so it reads larger than the size it started as. If you have calipers, measure the barb’s outer diameter directly. If you don’t, a piece of thin wire wrapped around the barb, marked, and divided by 3.14 will get you close enough to pick the right size off the shelf.
Here is our full small-engine range with the outside diameter of each size — the number that decides whether the hose will actually feed through the tank grommet and past the engine shroud:
| Inner diameter | Outside diameter | Where you will see it |
|---|---|---|
| 1/8″ (3.2 mm) | 9 mm (0.35″) | Small handheld two-stroke engines — trimmers, blowers, and smaller chainsaws |
| 3/16″ (4.8 mm) | 11 mm (0.43″) | Handheld equipment and older push mowers |
| 1/4″ (6.4 mm) | 12 mm (0.47″) | The workhorse on carbureted push and riding mowers |
| 5/16″ (7.9 mm) | 14 mm (0.55″) | Larger engines and higher-flow setups; also used on fuel-injected engines |
| 3/8″ (9.5 mm) | 16 mm (0.63″) | Larger engines, supply and return runs |
| 1/2″ (12.7 mm) | 20 mm (0.79″) | Large engines and high-flow setups |
ID gets all the attention, but OD is what has to fit through tight spaces. A 1/4″ ID hose with a 3 mm wall measures about 12 mm (roughly 0.47″) across. If your new line won’t fish through the gap behind the flywheel cover, the OD is usually why — not the ID.
Two notes on the smaller sizes. 3/16″ is common in the aftermarket for handheld equipment — we stock it, but check your specific machine before ordering, because it is not a factory fuel line part number on every major engine brand. And 5/16″ shows up on fuel-injected engines, so if you are looking at a 5/16″ factory line, confirm the application rather than assuming it matches a carbureted mower.
Our small-engine hose is supplied in the six sizes above, 5 ft per hose, with matching stainless clamps — so one kit covers a range of machines without ordering six separate rolls. See the rubber fuel line hose kit for the current bore sizes and pack configurations.
Matching the Replacement Line to the Fitting
Match the ID to the barb, check the OD against the space it has to pass through, and measure the actual route rather than the straight-line distance — a straight measurement gives you a hose that comes up short once it is routed around bends and past the shroud. Add a little slack at each end: too short and the hose pulls at the fittings, too long and it sags into a kink that starves the engine.
Fittings have to match the hose too. Use the clamp type your machine was built with, and replace the clamps whenever you replace the line — a clamp that has lost its tension is a slow leak waiting to happen.
For the full sizing walk-through, including how to measure a barb you cannot get calipers onto, see our guide on how to choose fuel line hose size.
Why Ethanol-Blended Fuel Wears Out Small Engine Fuel Lines
This is the single most common reason a fuel line fails earlier than its owner expects, and it is worth understanding rather than guessing at.
Most US pump gasoline is E10 — up to 10% ethanol. Ethanol is a solvent, and it also attracts and holds water. Both matter to a fuel hose:
- It pulls plasticizers out of the rubber. The compounds that keep a hose soft and flexible are gradually leached away. The hose hardens, loses its grip on the barb, and starts cracking — usually from the inside, where you cannot see it.
- It carries water into the system. Absorbed moisture leads to corrosion on steel fittings and, when it separates out, a layer of water sitting in the bottom of the tank and the carburetor bowl.
- It loosens deposits. Ethanol cleans varnish and debris out of the tank and lines. That debris has to go somewhere — typically the fuel filter and the carburetor jets.
NBR — the nitrile tube material used in carbureted fuel hose, and the material our small-engine hose is built from — resists gasoline well. Ethanol blends are simply harder on it than straight gasoline is. What that means in practice is not “avoid ethanol,” but “expect a shorter service life and inspect more often.”
If you can buy ethanol-free fuel for equipment that sits for months at a time — mowers, snowblowers, generators — do it. For storage, run the carburetor dry or use a fuel stabilizer, and treat a hose that has spent several seasons on E10 as a wear item rather than a permanent part.

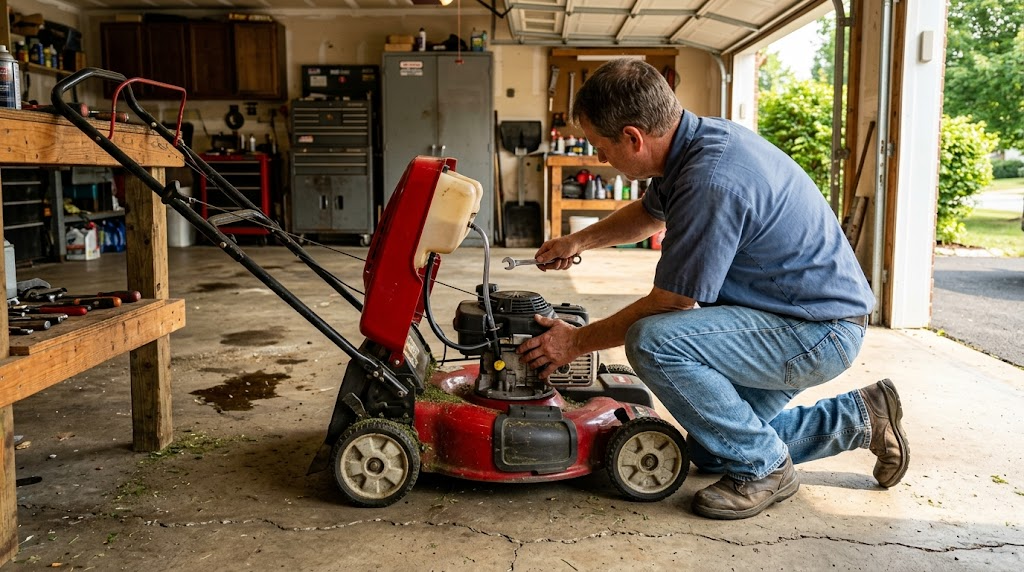

Replacing the Line Without Creating a Leak
The job is short, but it has steps people skip — and those are the ones that cause problems later.
- Shut the fuel off and relieve pressure. Clamp the line or drain the tank on a gravity-fed mower. On a machine with a fuel pump, pull the pump fuse or relay and run the engine until it stalls from lack of fuel.
- Disconnect the battery if the machine has one. It costs ten seconds and removes a spark source you do not need.
- Remove the old line, cutting it off if it will not release, and keep it as a length template.
- Cut the new line square and clean. A ragged, angled end will not seat fully on the barb, and it can shed particles into the carburetor.
- Seat the hose fully onto each barb, without twist, and fit a fresh clamp.
- Route it clear of moving parts and hot surfaces, with enough slack to absorb vibration and no sagging loops.
- Refuel, start, and check every connection for leaks — both before the engine warms up and again once it reaches operating temperature.
Two mistakes we see repeatedly: a line routed against a belt or pulley and worn right through, and clamps that were left off or reused. A third is heat — people soften a stiff new line with a lighter. Don’t. Hot water is the safe way to make a tight line flexible, and an open flame near a fuel system is how fires start.
For the full step-by-step, see our guide on how to replace a lawn mower fuel line.
Small Engine Fuel Line Problems and What They Mean
Almost every failure comes down to one of a handful of things. Hardening and cracking is number one, usually a hardening problem that started on the inside. Internal breakdown — the tube disintegrating and throwing black particles into the filter and carburetor is a common cause of a mower that “suddenly” won’t run. Leaks at connections come from loose clamps, a hose one size off the barb, or a hardened end that has lost its grip. Clogging starves the engine at full throttle. And collapse — if you can pinch the line shut with two fingers, it is not strong enough for a bend under vacuum.
If you are chasing a specific symptom, our fuel line leak diagnosis guide walks through the causes, and 6 common fuel line problems covers the wider set.
Don’t Forget the Parts Around the Line
A fuel line rarely fails alone, and three related parts cause a lot of the no-start calls we hear about.
Fuel filter. If your machine has an inline filter, replace it with the line. They are inexpensive, they are what catches the debris a deteriorating hose sheds, and a partially blocked filter produces exactly the same symptoms as a blocked line. Note the flow direction arrow when you fit it.
Tank grommet. On handheld two-stroke equipment, the rubber grommet where the line passes into the tank is one of the most common leak points on the whole machine. If the line is cracked, the grommet is usually the same age and in similar condition — replace both.
Pulse line. Riding mowers with a vacuum-operated fuel pump use three lines, not one: tank to pump, pump to carburetor, and a pulse line from the crankcase to the pump. The pulse line carries no fuel, so it never looks like a suspect — but if it cracks or falls off, the pump stops working and the engine will not run. Check it at the same time.
When to Replace a Lawn Mower Fuel Line
There is a lot of folklore about replacing a fuel line on a fixed schedule, and the honest answer is that the intervals do not agree with each other. Some engine service schedules specify a replacement interval in operating hours; others do not publish a fuel-line interval at all and tell you to inspect and replace on condition. Rather than borrow a number from a different machine’s manual, check your own engine’s service schedule and treat the line as an inspection item either way.
The practical rule: look at the line once a season, before you start mowing, and replace it on condition. It is done if it is:
- hard or stiff instead of supple
- cracked, especially anywhere near the ends
- swollen or soft at the fittings
- seeping fuel, or leaving a fuel smell or wet stain under the machine
- leaving black residue on your fingers when you rub it
- easy to pinch shut with two fingers

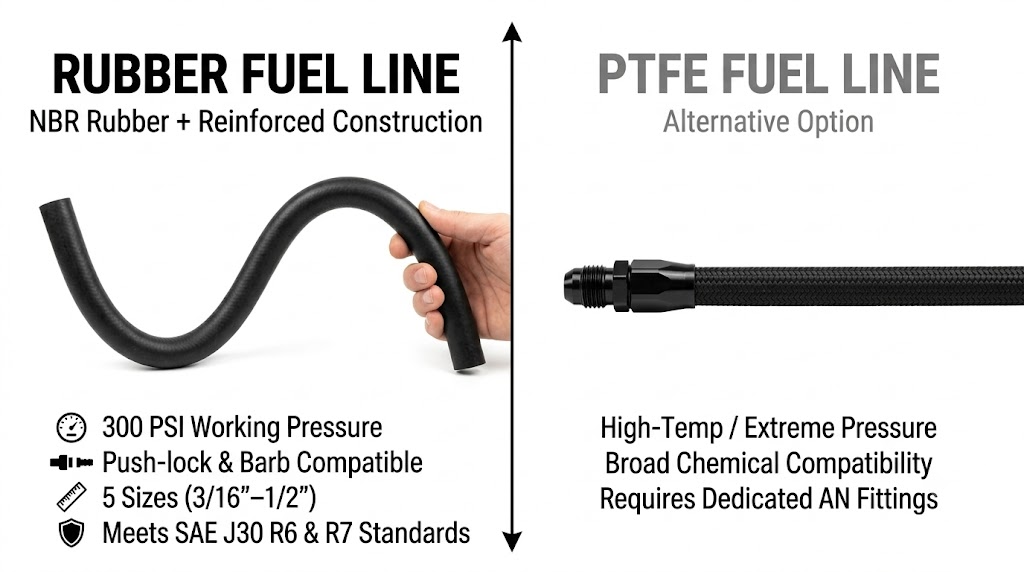

Rubber vs PTFE Fuel Line
Most mowers take a rubber line. There is one other material worth knowing about, because it comes up when people are working on higher-performance fuel systems.
Rubber is the standard for carbureted small engines: low pressure, flexible, easy to route through tight spaces, and sealed with a simple clamp. PTFE — a braided hose with a PTFE inner core — is a different tool for a different job. It resists heat and chemicals well, including ethanol blends, but it is stiff, has a much larger minimum bend radius, and needs machined end fittings rather than a barb and clamp. On a high-pressure fuel-injection build that is the right trade. On a gravity-fed mower it is more hose than the job calls for, and harder to route in the space you have.
| Rubber | PTFE | |
|---|---|---|
| Designed for | Carbureted small engines, low pressure | High-pressure EFI, high-heat or high-ethanol builds |
| Flex and routing | Flexible, tight bends fine | Stiff, needs a larger bend radius |
| Fittings | Barb plus clamp | Machined end fittings |
| Ethanol | Suitable for pump gas; service life shortens with ethanol | Resists ethanol blends |
| Best for a mower? | Yes — this is what the engine was built around | No — more material and cost than the job needs |
If you are not sure which one your machine takes, the factory line is the answer. Match the material and size it came with.

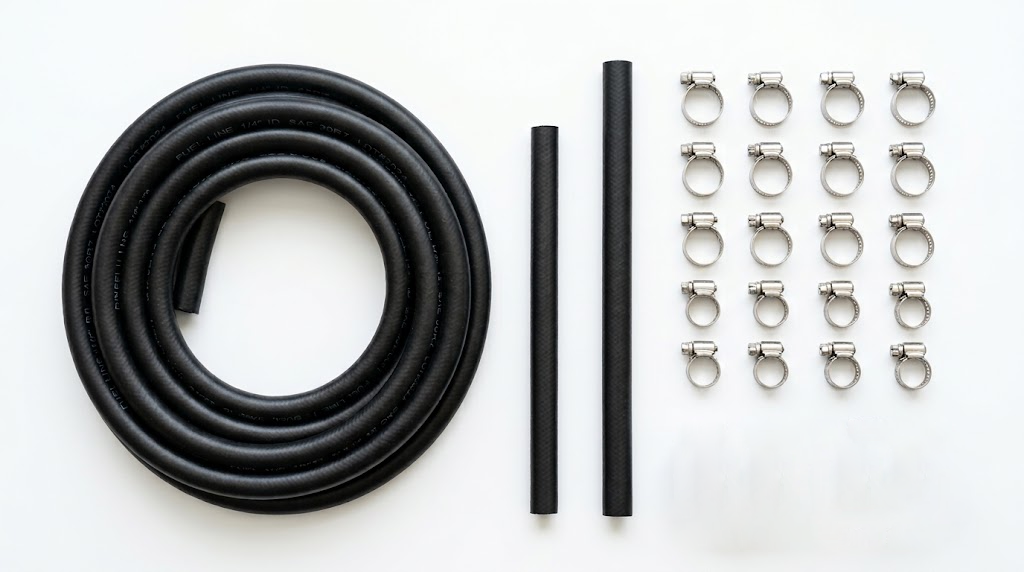

Our Rubber Fuel Line for Small Engines
We supply rubber fuel line for small engines in the sizes mowers actually use, in practical lengths with clamps included.
| Specification | What it is |
|---|---|
| Tube material | NBR (nitrile) rubber |
| Reinforcement | Braided polyester fibers |
| Wall thickness | 3 mm |
| Bore sizes (ID) | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″ |
| Outside diameter | 9, 11, 12, 14, 16, 20 mm |
| Length per hose | 5 ft |
| Working pressure | 300 PSI |
| Burst pressure | 1200 PSI |
| Temperature range | -40°F to 257°F (-40°C to 125°C) |
| Clamps | Stainless steel, supplied with the kit |
A word on that pressure rating, because it is easy to misread. A mower’s fuel system runs at a few PSI — gravity does most of the work. The 300 PSI working rating is headroom, not a requirement, and it is not a statement that this hose belongs on a fuel-injected car. Injection systems specify a hose class rated for injection duty, and matching that class is what matters, not the raw pressure number. Use this hose for what it is designed for: low-pressure carbureted small engines and their tank and return connections.
Kits include multiple bore sizes so a shop can cover a range of machines without ordering six separate rolls. See the rubber fuel line hose kit for current sizes, clamp counts, and pack configurations, and we support OEM and ODM orders for custom lengths, diameters, and packaging.
FAQ
Do all lawn mowers take the same fuel line size?
No. Most carbureted walk-behind and riding mowers take 1/4″ ID, while smaller handheld engines use 1/8″ or 3/16″, and the size can still change between models in the same brand. Check the fitting on your machine rather than assuming, because an old hose will have stretched and swollen and will not tell you the size it started as.
How often should I replace a lawn mower fuel line?
There is no universal interval, and published recommendations differ. Check the line once a season and replace it on condition: replace it if it is hard, cracked, swollen at the ends, seeping fuel, or leaves black residue on your fingers.
What is the difference between SAE J30R6, J30R7, and J30R9?
They are different classes within the same low-pressure fuel hose family. J30R6 is an older carbureted-system class with limited tolerance for high-ethanol fuel and higher permeation. J30R7 is a later low-pressure class with better heat, ozone, and permeation performance, and good-quality R7 hose is the version usually specified for ethanol blends. J30R9 is the fuel-injection class, rated for higher pressure and temperature. If your engine’s service manual names a class, match it — putting a carbureted-class hose on a fuel-injected engine is a common and damaging mistake.
Can I use vacuum hose or clear vinyl tubing as a fuel line?
No. Vacuum hose is formulated for air and will swell, soften, and eventually collapse when it carries fuel. Clear vinyl hardens quickly and is not rated for gasoline. Neither is a substitute for a fuel hose regardless of how well it happens to fit.
Can I use PTFE fuel line for my lawn mower?
You can, but for a carbureted mower a rubber line is the simpler and correct choice. PTFE is stiff, needs machined end fittings instead of a barb and clamp, and is designed for high-pressure fuel-injection systems. If your mower came with rubber, keep it rubber.
How do I know if my fuel line is leaking?
Look for the smell of fuel, wet spots or staining around the fittings and under the machine, or a line that is hard and cracked. On a mower’s simple plumbing a careful visual check at each connection usually tells you, but recheck after the engine reaches operating temperature — some leaks only appear once the system is warm.
Conclusion
For a lawn mower, the fuel line you want is almost always a rubber one — the right ID, an OD that fits the space you have, sealed with fresh clamps and routed clear of anything hot or moving. Replace it when it stiffens, cracks, or seeps, not on a calendar, and check it once a season before you need the machine. It is a small part, and it is the difference between a mower that starts on the first pull and one that leaves you pulling the cord in the yard.
